Laundry Feeding Equipment

Four Position Clamp Feeder SF3300P

Product Description

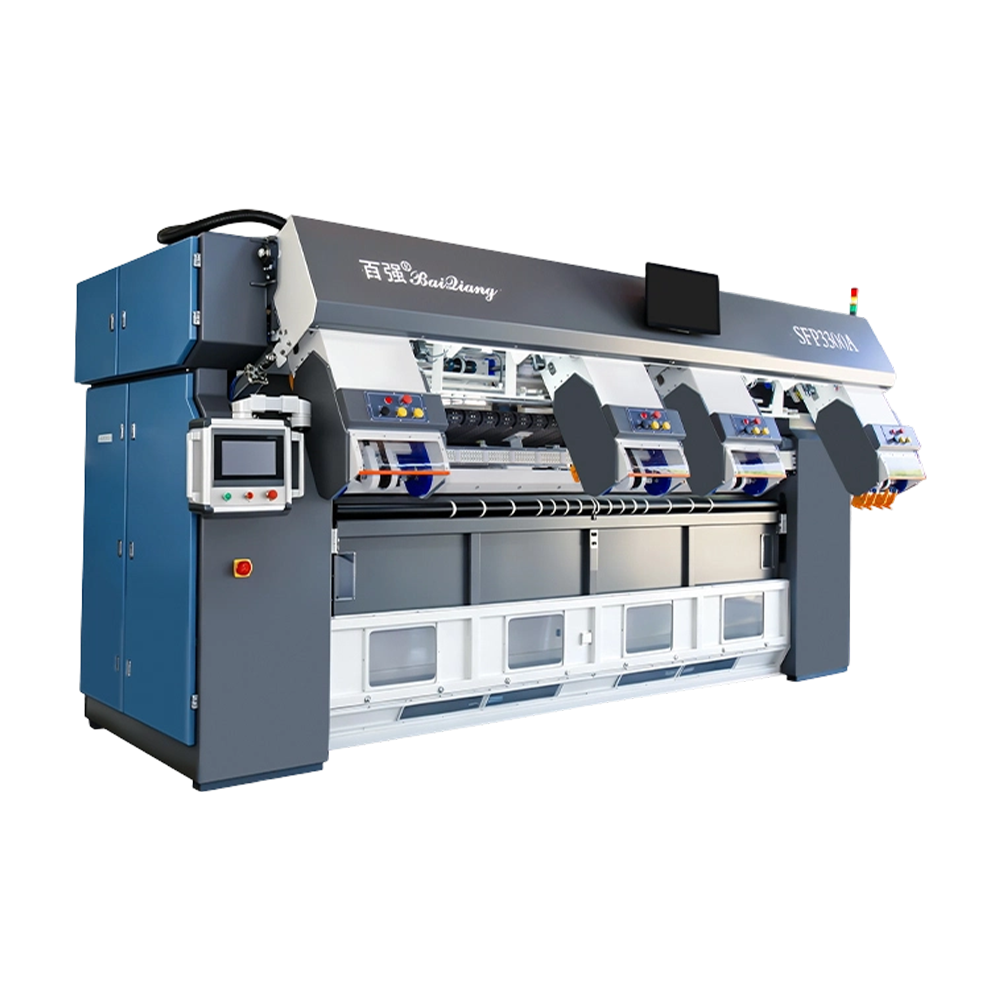

Four Position Clamp Feeder SF3300P is an automatic linen feeding machine designed for commercial laundry and ironing lines. It automatically feeds and spreads flatwork before ironing, helping improve production efficiency, reduce labor costs, and ensure consistent linen positioning.

PREV： Single Position Clamp Feeder SPF3300NEXT： No next article

View Product Catelog

Applications

Applications
Four Position Clamp Feeder SF3300P is widely used in commercial laundries, hotel laundry centers, hospitals, textile rental companies, and central laundry plants. As a Commercial Laundry Feeder, it is suitable for feeding bed sheets, duvet covers, tablecloths, pillowcases, and towels. As a Four Position Clamp Feeder, it is ideal for high-volume laundry operations.

Core Features

Core Features
1. Multi-Station Feeding System
Features 4 feeding stations with 2 manipulators per station (1 working, 1 standby) to improve feeding efficiency.
2. High-Speed Spreading
Equipped with 3 spreading manipulators for faster and more stable linen spreading.
3.Fabric Protection System
Dual servo torque control and photoelectric detection reduce linen tension and help reduce fabric damage.
4. Smart Touch Control
10-inch touchscreen PLC supports programmable operation and feeding statistics for each station to improve production management.

OEM/ODM Information

OEM/ODM Information
We provide OEM/ODM services with customized solutions based on your specifications, drawings, or samples. MOQ depends on product requirements and manufacturing processes. Samples are available, and sample costs can be deducted from future bulk orders.

Pricing and Payment
Pricing depends on order quantity, destination, and trade terms such as EXW or FOB. Payment options include T/T and L/C.

Logistics and Delivery
Stock products can be shipped within 7 days, while regular orders typically require 15–30 days. Delivery time depends on order volume and production complexity.

Quality Certification
Manufactured under the ISO 9001 quality management system, our products comply with international standards such as CE and RoHS. Relevant certificates are available upon request.

Warranty Service
We provide a 12-month warranty with repair or replacement support for manufacturing-related issues.

Shipping Services
We provide flexible shipping solutions including DAP and DDP, with door-to-door delivery and customs clearance support through experienced logistics partners.

FAQ

FAQ
Q1: What linen types can the Four Position Clamp Feeder SF3300P process?
A: It is suitable for bed sheets, duvet covers, tablecloths, pillowcases, towels, and other flat linens.

Q2: Can the equipment be connected to existing ironing lines?
A: Yes. It is designed to integrate with flatwork ironers and finishing systems for continuous production.

Q3: Is Four Station Clamp Feeder suitable for large commercial laundries?
A: Yes. It is designed for high-volume laundry operations requiring stable, automatic linen feeding and spreading.

Product Parameters

Parameter	Specification
Model	SF3300-P
Main Power Supply	380V 50Hz (3P)
Total Motor Power	16.75kW
Compressed Air Pressure	0.6MPa
Compressed Air Consumption	230L/min
Compressed Air Inlet Diameter	Φ12mm
Operating Speed	10-50m/min
Max Processing Width	3300mm
Max Processing Capacity	1080 sheets/hour
Dimensions (L × W × H)	4700×3250×2400 mm
Total Weight	Approx. 4000kg
